Industrial Packaging Engineering · Online Parametric Dieline CAD

Enter the inner dimensions
Get a packaging dieline in 5 seconds

Choose from an extensive ECMA / FEFCO box style library with automatic ±0.1mm caliper compensation at every fold. Check the structure in a 3D fold preview, then export a production-ready DXF for your laser sample cutter in one click.

±0.1mm caliper compensation
Extensive standard box styles
3D fold & interference check
Ready for laser sample cutters
No installation required•Plug-and-cut for laser cutters•Standard box styles free to use
Structure Studio Parametric Workbench
ECMA / FEFCO packaging engineering standards
Production-grade engine online
Length (L - inner)
200.0mm
Width (W - inner)
140.0mm
Height (H - inner)
80.0mm
Cut lineCrease line
FEFCO 0427 corrugated mailer box: example of a parametric dieline generated in Structure Studio
Caliper compensation: +0.68mm
3D fold interference check: 0 conflicts (Pass)
Dieline turnaround
100x+ faster
CNC laser tolerance
±0.1 mm
Sampling savings
Fewer physical trials

Built on mainstream global printing, packaging and supply-chain standards

FSCFSC Certified
ECMAECMA Folding Carton Standard
FEFCOFEFCO Corrugated Codes
G7G7 Color Certified
PPWREU PPWR Ready
ISOISO 9001 Quality
Who It's For

Who uses Structure Studio?

From structural design and sampling to brand projects and quoting, creating dielines is no longer a job only a few specialists can do.

Packaging structural designers

Stop drawing from scratch

Load a proven standard box style, enter the inner dimensions and let caliper compensation run automatically, so you can focus on structural innovation.

Typical use cases
New box style development, fast redraws when customers change sizes

Sampling teams at packaging printers

Layered DXF, ready for the cutting table

Cut lines and crease lines on separate standard layers, compatible with mainstream laser sample cutters such as Kongsberg and Esko, with no manual line cleanup.

Typical use cases
Same-day samples after an order, batch dieline file preparation

Brand owners / e-commerce product managers

See it in 3D before sampling

Preview the full 360° folding process in your browser, spot structural interference early and only commit to physical samples once the design checks out.

Typical use cases
New packaging project reviews, comparing supplier proposals

Packaging sales & quoting

The dieline is your quote basis

Exported files include dimensions and sheet layout, so production and purchasing can price them directly, with fewer back-and-forth rounds with customers.

Typical use cases
Fast quotes for inquiries, cost estimates before sampling
Industrial data comparison

Manual drafting vs. Structure Studio parametric generation

Comparing crash-lock bottom box drafting time, caliper tolerance and 3D interference checks

Dieline drafting & trial sample time comparison (minutes)

Covers caliper tolerance conversion, flat layout calculation, tuck and lock drawing, and file conversion for the cutting table

100x+ faster drafting
Crash-lock bottom box dieline draftingUnit: min
Traditional: Manual tuck and angle calculation in AutoCAD120.0 min
Structure Studio: Pick a box style, enter sizes, done in 5 seconds0.1 min (1200x faster)
±0.1mm caliper compensation & adjustmentUnit: min
Traditional: Looking up corrugated allowance tables by hand45.0 min
Structure Studio: Applied automatically in milliseconds0.0 min (No manual conversion)
Fold interference & structural checksUnit: min
Traditional: Cutting samples and assembling them by hand90.0 min
Structure Studio: Automatic 3D fold interference check0.5 min (Check instantly, no cutting)
Structure Studio applies built-in parametric compensation formulas, calculating caliper allowances outward from the inner dimensions and keeping tolerances within ±0.1mm
In-browser 3D interference checks catch jammed tucks or visible gaps early, saving ¥200+ in physical sampling costs per trial

* Figures are estimates for typical business scenarios; actual results vary with product specs, materials and logistics conditions.

Structure Studio five-dimension capability model

Rated on 5 core metrics: dimensional tolerance, drafting time, file-ready rate, paperless trial sampling and box style library coverage

Overall score 99.2 / 100
Precision (±0.1mm)Output speed (5s)Format supportZero-waste samplingBox library
Structure StudioOverall score: 98.5 / 100

Leads on key industrial metrics: dimensional tolerance (±0.1mm), near-instant dieline output and 3D interference checks.

Manual draftingOverall score: 45.2 / 100

Relies heavily on veteran experience and is limited by drafting hours, trial-and-error board waste and complex custom shapes — hard to scale.

Tolerances held within ±0.1mm, helping prevent common defects such as lifting lids and over-tight tucks that split
Exported DXF files keep cut and crease lines on separate layers, ready to run on laser die-cutting machines

* Figures are estimates for typical business scenarios; actual results vary with product specs, materials and logistics conditions.

Fast industrial sampling workflow

From dimensions to the cutting table: a fast 4-step workflow

Leave behind manual AutoCAD drafting, repeated tolerance math and costly wasted trial samples. Get a production-ready laser dieline in 5 seconds and aim for approval on the first sample.

WORKFLOW 01•Pick a standard box style
The industry pain point

Traditional packaging structures take hours of manual AutoCAD work, and a slightly off lock can keep the box from closing properly.

Load proven standard box styles in one click, no manual drafting

Covers tuck bottom boxes, crash-lock bottom boxes, mailer boxes and many more international standard box styles. Instead of drawing construction lines from scratch, reuse mature structures proven in large-scale production.

A wide range of proven folding carton and corrugated box styles
Proven self-locking structures that help prevent lifting lids and bottom failures
Filter quickly by cosmetics, food, electronics and e-commerce use cases
ECMA / FEFCO Standard Catalog · Box Style Library
Box style library ready
ENGINE:structure-workshop/STEP_01
REAL-TIME SIMULATION
PANEL AMAIN FACEPANEL B
ECMA A20.20 AUTO-LOCK
CutCrease
Proven standard box styles loaded — ready to fold
Drafting speed:100x+ faster
Standard box geometry loaded
Workflow stage 1 / 4
Classic standard box styles

Classic packaging structures proven through drop and compression testing

Built-in international standard box styles that scale parametrically to your actual inner dimensions.

FEFCO 0427 classic e-commerce mailer box
E-commerce & export
✨ High-strength kraft board + flexo water-based ink printing

FEFCO 0427 classic e-commerce mailer box

Fully folding locking design that closes without tape, with high crush strength. A standard choice for shipping to Europe and North America.

E-flute / B-flute corrugated · Glue-free assembly · Double dust flapsView case →
ECMA A20.20.03 reverse tuck end box
Beauty & personal care
✨ Reverse UV varnish + spot embossing

ECMA A20.20.03 reverse tuck end box

A widely used carton structure for pharma and personal care, with reverse tucks, suited to high-speed automatic folder-gluers.

350gsm C1S board · Automatic gluing · 180° pre-foldView case →

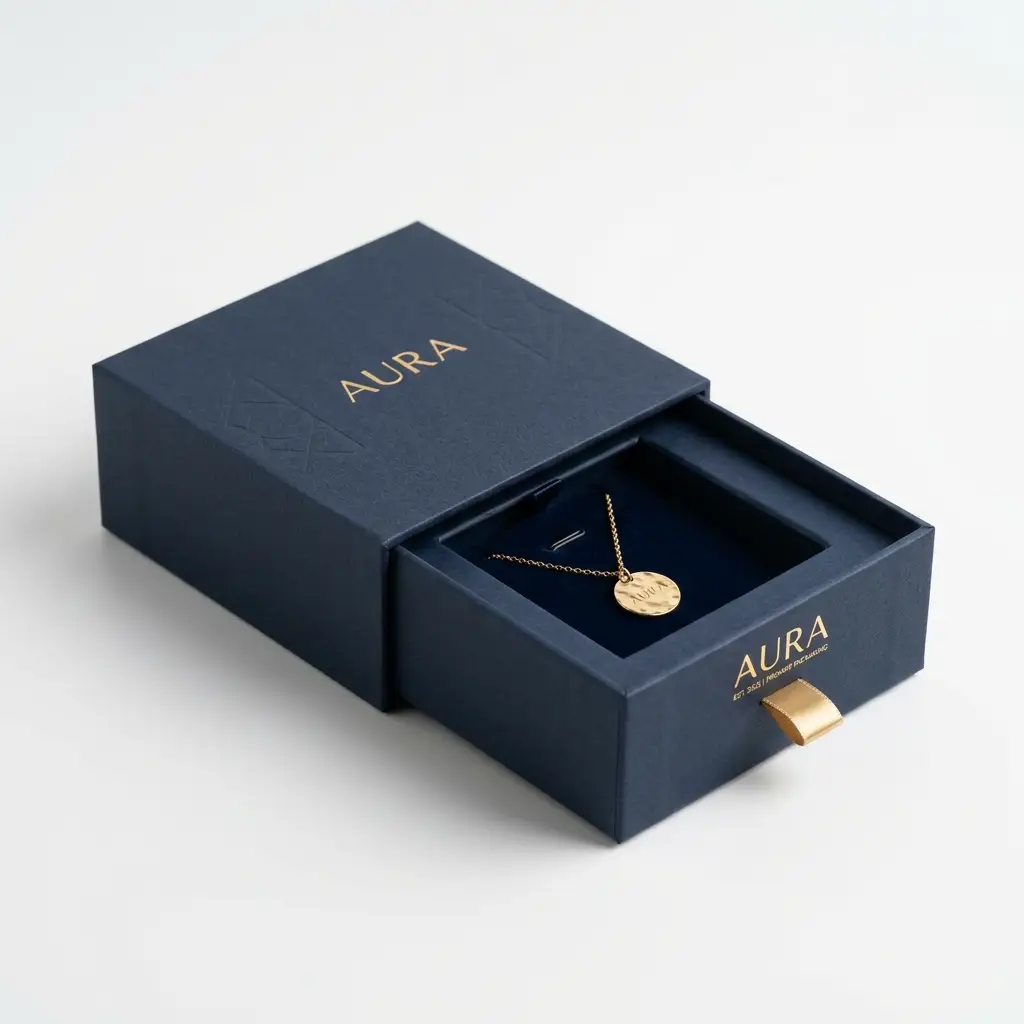

Premium sliding drawer box (Matchbox Style)
Premium gift boxes
✨ Fully wrapped edges + ribbon pull

Premium sliding drawer box (Matchbox Style)

An inner tray slides into an outer sleeve with a smooth, controlled feel. Widely used for premium fragrance and fine jewelry.

1200gsm grey board + 157gsm art paper · Drawer styleView case →
FEFCO 0215 crash-lock bottom hanging display box
Retail display
✨ Matte lamination + 3mm bleed

FEFCO 0215 crash-lock bottom hanging display box

A built-in hang tab at the top and a bottom that locks in one push, designed for peg-hook display in retail stores.

400gsm grey-back duplex board · Hang hole · Quick foldView case →
Technical FAQ

Packaging structure design & dieline CAD FAQ

ECMA/FEFCO style codes, DXF compatibility for laser cutting and how caliper compensation works

Yes. Exported DXF files follow international packaging prepress conventions, with cut lines (through-cut) and crease lines on separate, color-coded layers. Curves are smooth, without stray points, self-intersections or broken segments, so mainstream laser cutters and digital cutting tables can run them without a die-maker redrawing or cleaning up lines.

💡 Key takeaway: Ready for mainstream laser and CNC cutting tables such as Kongsberg and Esko, with industry-standard color-coded layers.
Leave manual AutoCAD drafting behind

Enter L × W × H and get a precise production dieline in 5 seconds

Open Structure Studio to explore an extensive library of international standard box styles, check them in a 3D fold preview and export production-ready CAD files in one click.

Extensive ECMA/FEFCO box styles DXF export, plug-and-cut Standard box styles free to use
